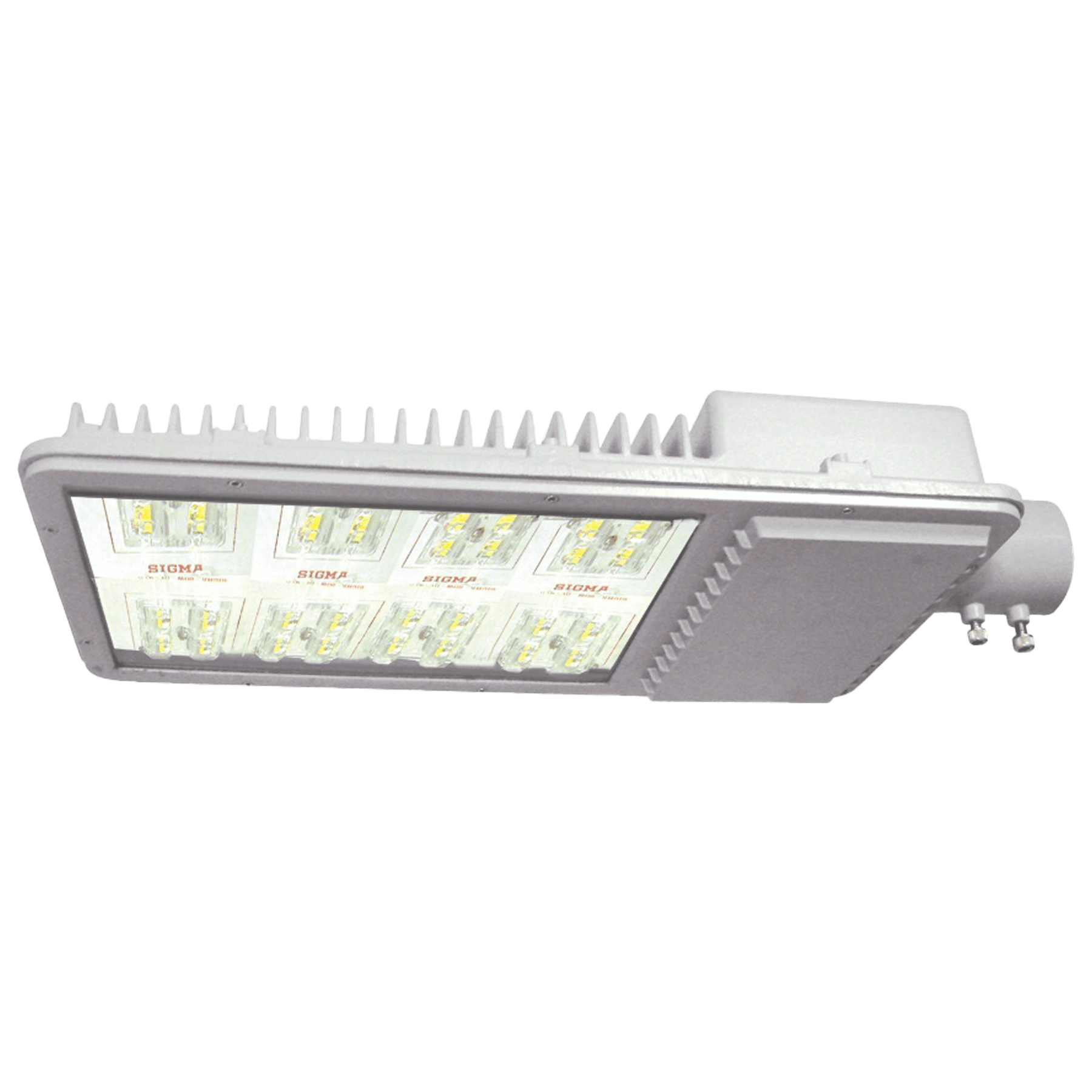

High performance Road Lighting Luminaries with 48 nos of 5 watt LEDs producing 130/139 lumen/ Watt having life span of approx. 60000hrs with T2/ T3 optic lenses for uniform distribution between poles.
| Power | 60W | Type No. | 24320 |
| Housing | Single piece Die Cast Aluminum alloy Housing having high conductivity heat sinks | LED make | Osram/Bridgelux/Cree |
| No. of LEDS | 24 nos | LED lumens output | 130/139 lm/W |
| Life Span | >60000 Hrs. | Color Temperature as required | 2700K-6500K as required |
| Luminary efficacy | >90% | CRI | 70 |
| Driver | Constant Current type. Designed as per luminary requirement. | Optics | High Quality optics to enhance the Performance of the luminaries and to match the required Photometry |
| The Voltage Variations | 110V- 270V AC | Power Factor | >0.95 |
| Efficiency of Drivers | >85% | THD (Total Harmonic Distortion) | <10% |
| Ingress Protection | IP 66 |
| Standards | The Luminaires meet the requirments laid down in the latest IS Codes Photometric data can be provided where required |
| Protections | External 10KV Surge Protection & Internal 4KV Surge Protection, Short Circuit, Over Current, Over Voltage, Over Temperature |
