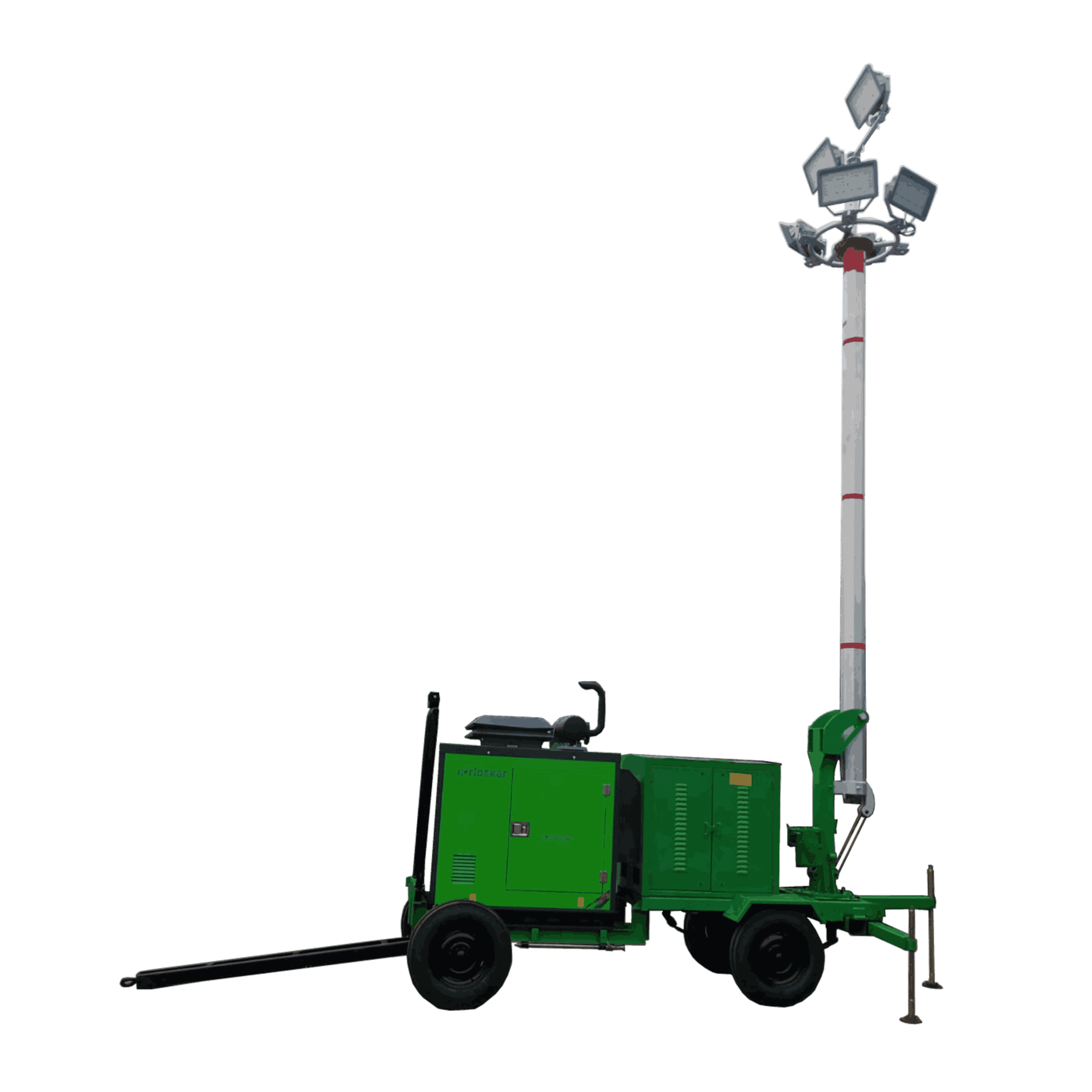

A hybrid mobile lighting tower ready with a single-phase disel generator of 5 KVA / 7.5 KVA with Lithium Battery charging system to power the lights with automatic changeover.
| Tower Height | 7 mtr. |
| Trailer Type | Single axle, Flatbed |
| Wind speed | 50mtr./sec or 180km/hr. |
| Winch | Manual / Motorised as Required |
| Light | Sigma 200W Led x 6 |
| Battery | 96 volt 160 Ah Lithium Ferro-Phosphate |
| Inverter | 8 KVA off grid |
| DG set | 5 KVA / 7.5 KVA |
| Phase/Voltage | Single/230v AC |
| Charging Time | 4 – 5 hrs. |
| Back-up time | 8 – 10 hrs. |
| Battery life cycle | 2000 Charging cycles |
| Weight | 1500 kg approx. |
| Dimension(L x W x H) | 5000 mm x 2000 mm x 3000 mm |
| Robust design for rugged application. |
| External SMPS charger provided for use when the batteries are deep discharged. |
| Four wheel System for ease of shifting. |
| Exhaust fan to dissipate the extra heat. |
| Automatic changeover from DG to battrey source & vice versa. |
| Has option for coupling with IoT. |
