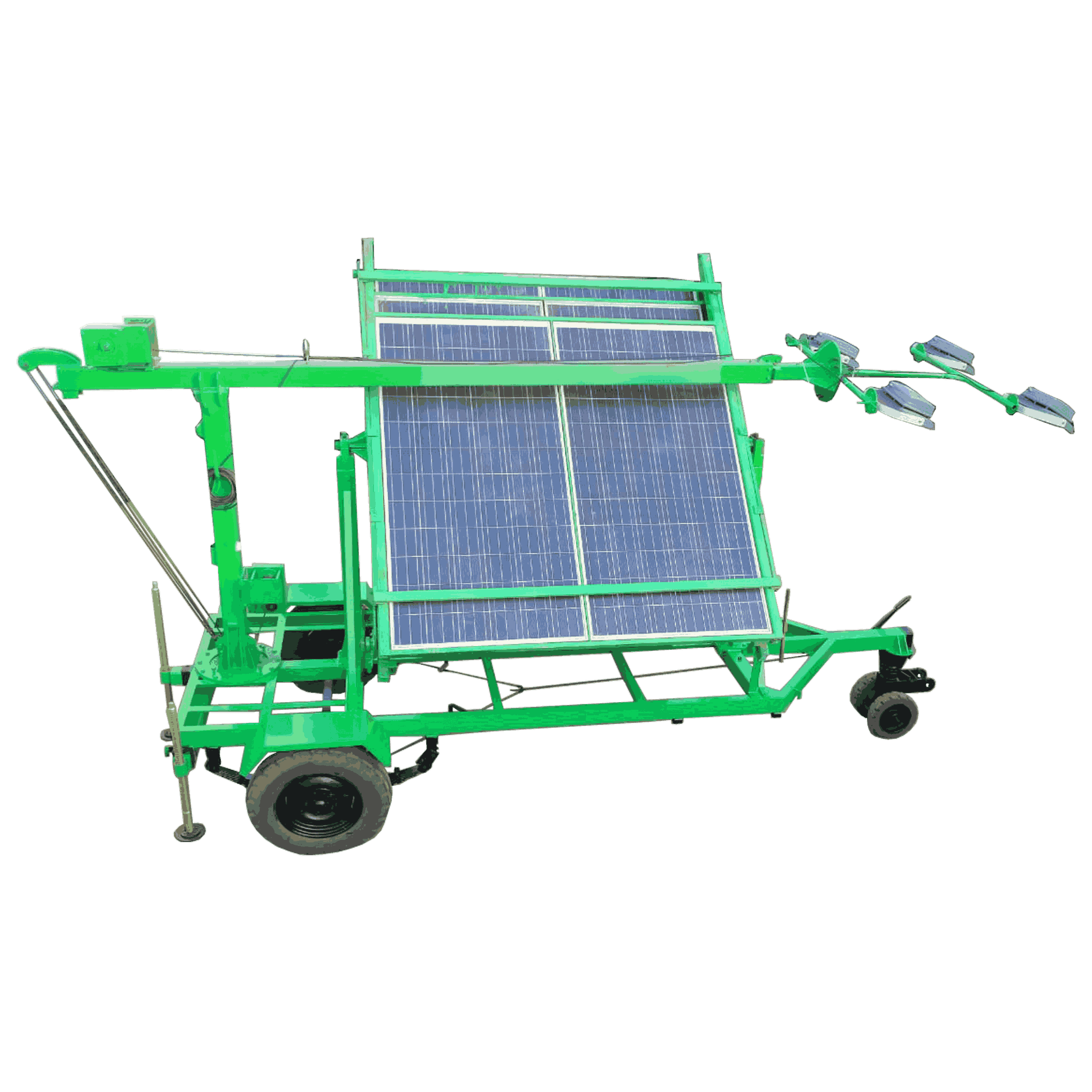

A Trolley Mounted Green Energy Mobile Lighting Tower with Renewable Sources of Power.
| Tower Height | 5 Meter onwards as required |
| Trailer Type | Single Axel, Flatbed |
| Winch | Manual |
| Lights | 100W / 150W / 200W Led Fitting as required |
| Number and Wp Of Solar Panels Used | 3 to 12 nos panels of 335/430/550 Wp as required |
| Type Of Solar Panels | Mono Crystalline |
| Battery | 48 V / 96 V of 100 Ah / 160 Ah / 200 Ah as required |
| Inverter | 2 KVA / 3 KVA / 5 KVA / 8 KVA as required |
| Life Of Battery | 2000 Charging Cycles |
| Charging Time | Through a day under sunlight |
| Back-Up Time | 10 to 12 hrs |
| Weight of the System | 1200 – 1500 kg approx. |
| Collapsible structure for solar panels for ease of shifting. |
| Has option to be charged from hybrid source i.e if the solar power is not available it can be charged with mains power source. |
| Easy connectivity with plugs and sockets. |
| Four wheeled trolley for ease of shifting. |
| Can be merged with other renewable sources of power and customized as per end user requirement. |
| The solar structure can also be built as an upgrade kit on existing mobile lighting towers. |
