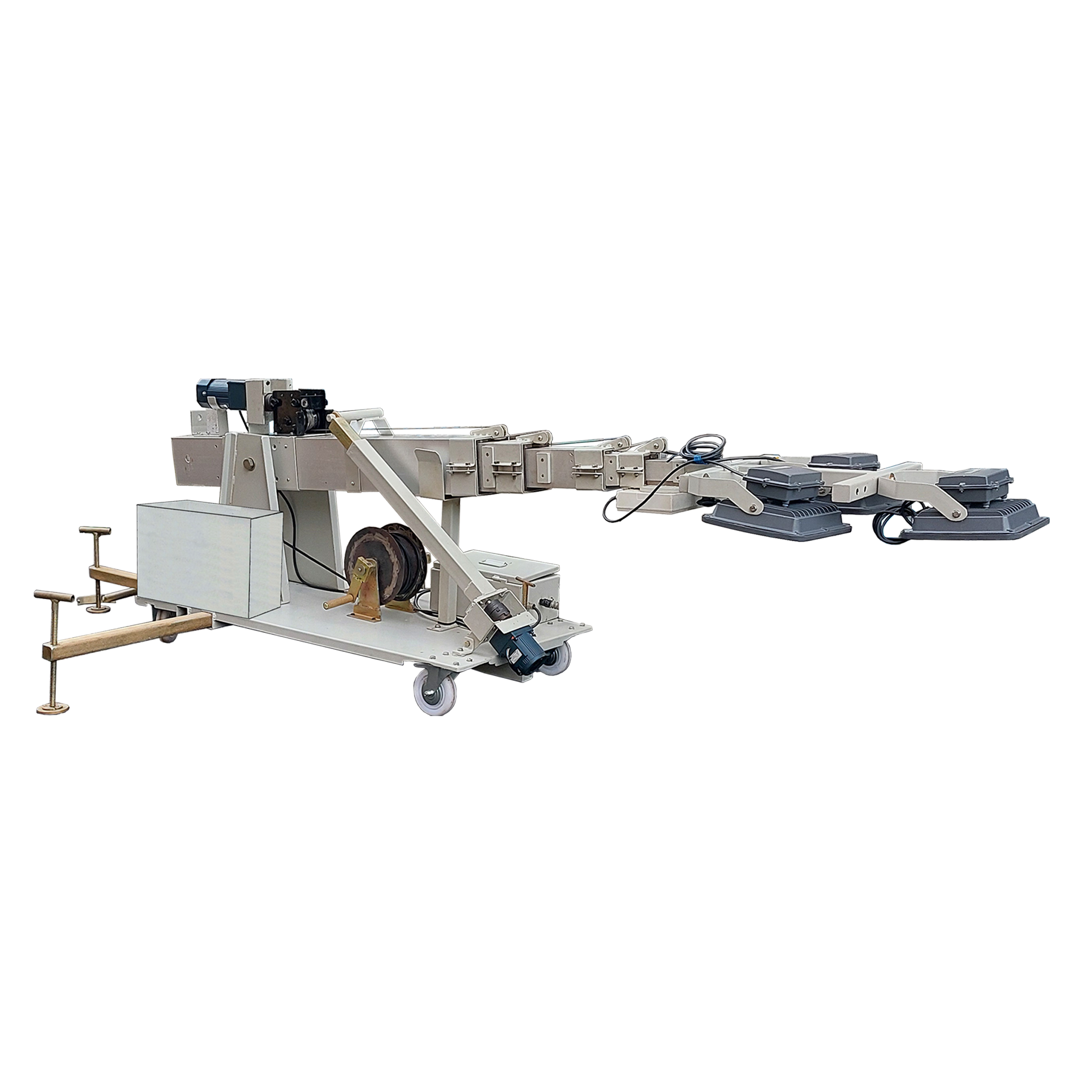

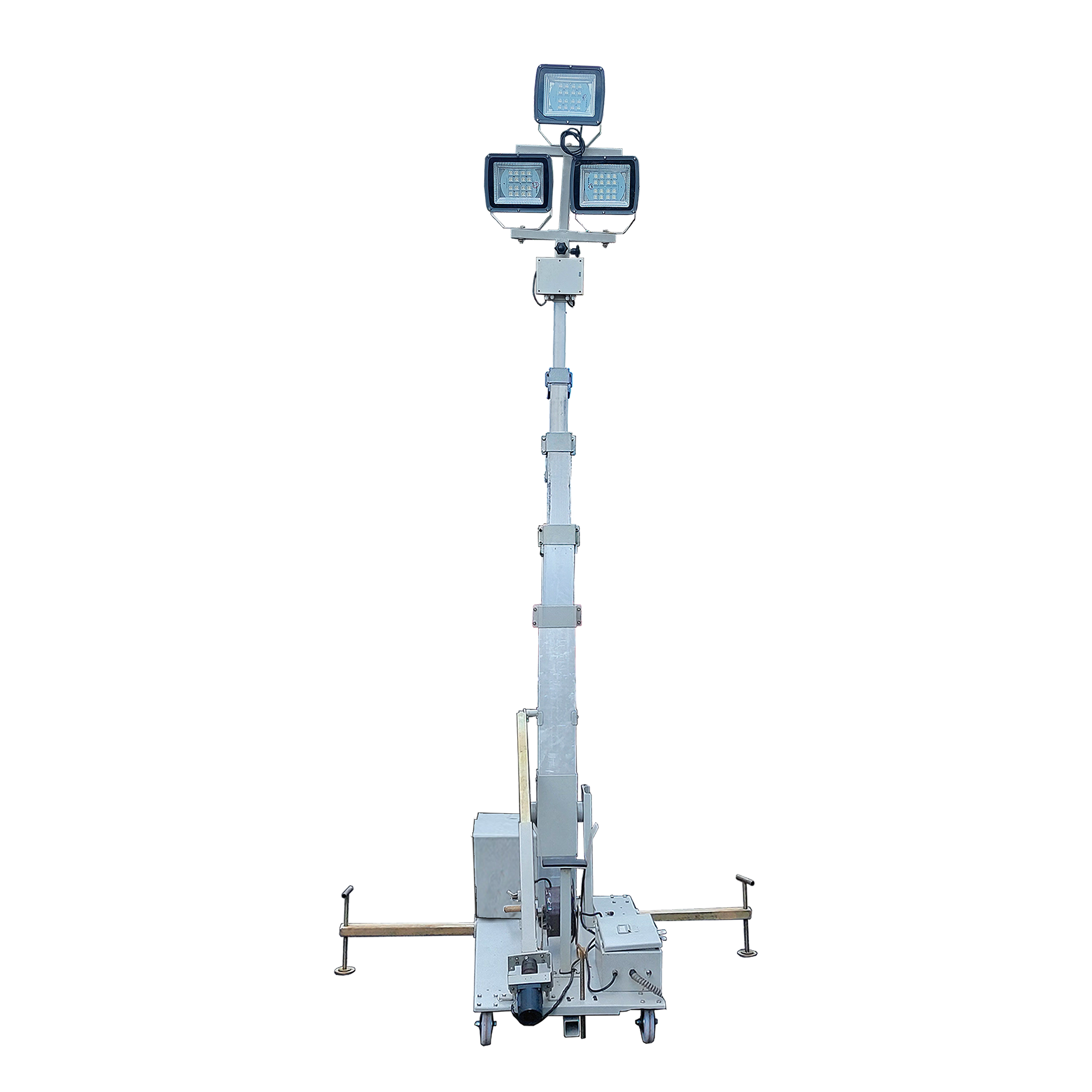

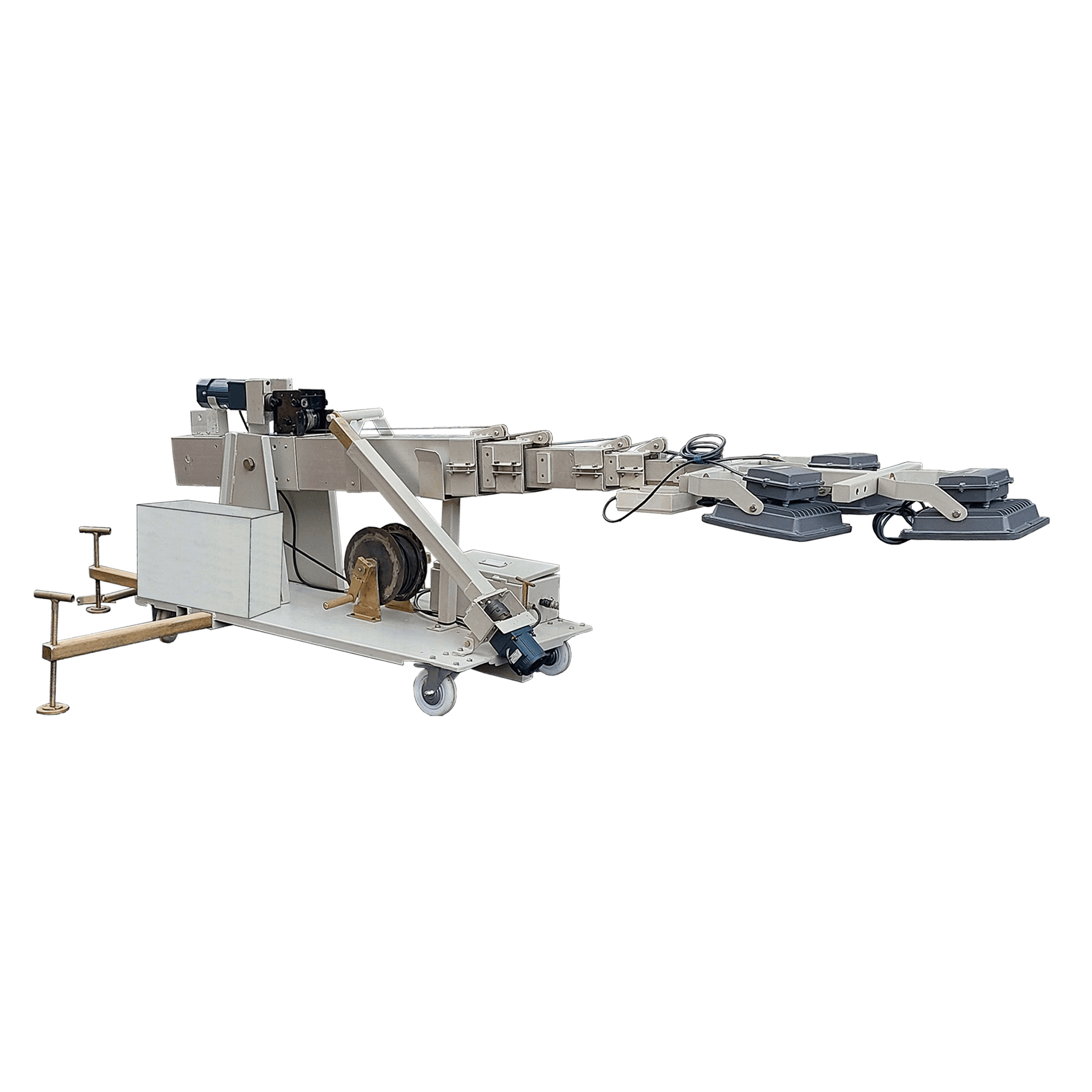

Portable, Battery-operated telescopic light tower with motorized lifting and tilting system, designed for quick deployment in outdoor and emergency applications
| Parameter | Specification |
| Maximum Height | 6 Meter |
| Minimum Height | 1.8 – 2.0 Meter |
| Mast Type | Multi-stage Telescopic |
| Material | AL Square Tube |
| Finish | Powder Coated / Painted / HDG |
| Mobility | Wheel-mounted |
| Outriggers | 4 Nos. adjustable |
| Parameter | Specification |
| Operation | Battery Operated |
| Motor | DC Motor |
| Functions | Telescopic + Tilting |
| Control | Push Button Panel |
| Safety | Mechanical Locking |
| Parameter | Specification |
| Batter | Lithium |
| Capacity | 24V 100Ah |
| Backup | 8 Hours (Approx) |
| Charging | External charger |
| Parameter | Specification |
| Type | LED Flood Light |
| Fixtures | 3 Nos. |
| Wattage | 40W / 60W each |
| CCT | 5700K-6500K |
| CRI | >70 |
| IP Rating | IP65 |
Construction sites, emergency lighting, road work, industrial areas, outdoor events
